8K Telfon Wire Epoxy Coated Thermistors For Car Seat Heating Rearview Mirror And Steering Wheel Heating MF5A-5

Product Categories
Hefei XIXI Electronics Co., ltd
Contact Now

8K Telfon Wire Epoxy Coated Thermistors For Car Seat Heating Rearview Mirror And Steering Wheel Heating MF5A-5

  • 1
  • 2
  • 3

Brand Name : XIXITRONICS

Model Number : MF5A-5 Series

Certification : RoHS , REACH

Place of Origin : China

MOQ : 500pcs

Payment Terms : T/T

Supply Ability : 2 Million pcs / Month

Delivery Time : 3-7 work days

Packaging Details : Plastic Bag Vacuum Packing

R 25℃ : 0.5KΩ-2 MΩ

B Value : 3200-4200K

R Tolerance : 0.5%, 1% , 2% , 3% , 5%

B Tolerance : 0.5% , 1% , 2% , 3%

Contact Now

8K Telfon Wire Epoxy Coated Thermistor For Car Seat Heating, Rearview Mirror And Steering Wheel Heating MF5A-5

Features:
■ Low cost , Small size
■ Proven long term Stability and Reliability
■ High Sensitivity and Fast thermal response
■ High accuracy and Interchangeability, Thermally Conductive Epoxy coated

Applications:
■ Temperature sensing , control and compensation
■ Automotive car seat heater control and engine management
■ PCB board mounting for over temperature protection
■ General Instrumentation applications

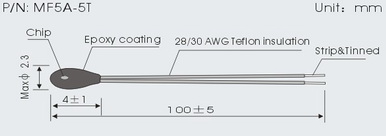

Dimensions:

8K Telfon Wire Epoxy Coated Thermistors For Car Seat Heating Rearview Mirror And Steering Wheel Heating MF5A-5 8K Telfon Wire Epoxy Coated Thermistors For Car Seat Heating Rearview Mirror And Steering Wheel Heating MF5A-5

Product specification:

Specification
R25℃
(KΩ)
B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMF5A-2-310-102□ 1 3200
0.75 - 3.0 typical in still air at 25℃
1 - 2 typical in liquids
-30～150
XXMF5A-2-338/350-202□
2
 3380/3500
XXMF5A-2-327/338-502□ 5 3270/3380/3470
XXMF5A-2-327/338-103□
10
 3270/3380
XXMF5A-2-347/395-103□ 10 3470/3950
XXMF5A-2-395-203□
20
 3950
XXMF5A-2-395/399-473□ 47 3950/3990
XXMF5A-2-395/399/400-503□
50
 3950/3990/4000
XXMF5A-2-395/405/420-104□ 100 3950/4050/4200
XXMF5A-2-420/425-204□ 200 4200/4250
XXMF5A-2-425/428-474□
470
 4250/4280
XXMF5A-2-440-504□ 500 4400
XXMF5A-2-445/453-145□ 1400 4450/4530
